Submittal Attachments

This page explains how to add, manage, and work with attachments in the Submittals tool. It covers:

• The different types of submittal attachments
• Adding attachments from various sources
• Annotating and editing PDF attachments
• Managing attachments through the workflow

Attachments allow you to include supplemental documents and files along with submittal items. They can be used for reference or review purposes at different stages.

They can be found in the following:

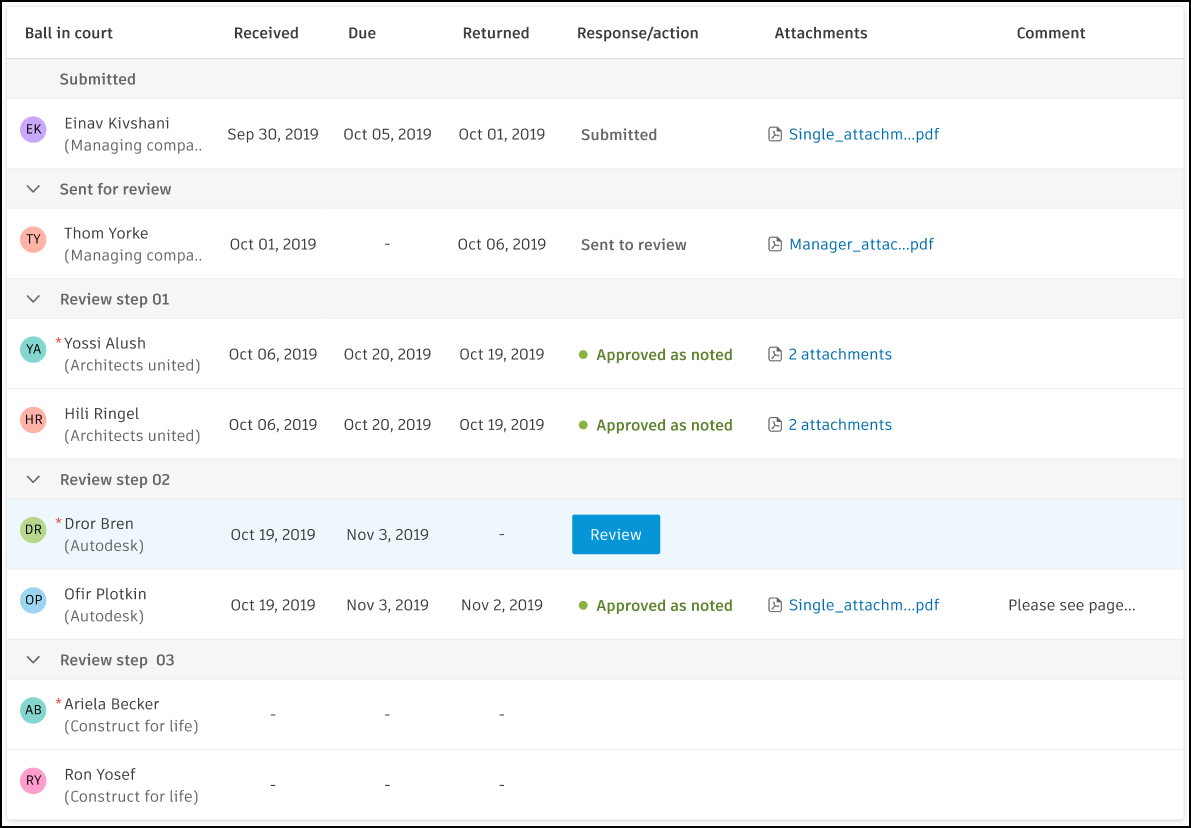

• Attachments column in the Workflow Table
• Step transition windows
• Final response attachments in the final response

There are four main types of submittal attachments:

• Submission: Added by the responsible contractor
• For Review: Sent by the manager for review
• Review Response: Included by reviewers with their feedback
• Final Response: Selected by manager as part of final response

Any attachments manipulations (upload, annotate, copy, delete) happen in transition windows:

• When items are Submitted to the Manager / Submitted for review / Closed and distributed
• When setting a response.

Submit Attachments to the Submittal Manager

Submittal attachments can be added from Project Files or a local machine. Attachments can also be copied or annotated from previous assignees. Adding attachments from the Files tool creates a copy of the file within the individual submittal. The original file will remain unchanged.

Responsible contractor submits attachments to the Submittal Manager.

Submit Submittal Attachments for Review

When submitting the item for review, Managers need to select the attachments to send to the reviewers.

There are 3 options to add attachments:

• Drag and drop new attachments or upload them from Project Files or the local machine
• Copy attachments:
  • Click the Copy button. The attachment is copied to the current user's section
• Open an attachment and add annotations (optional)

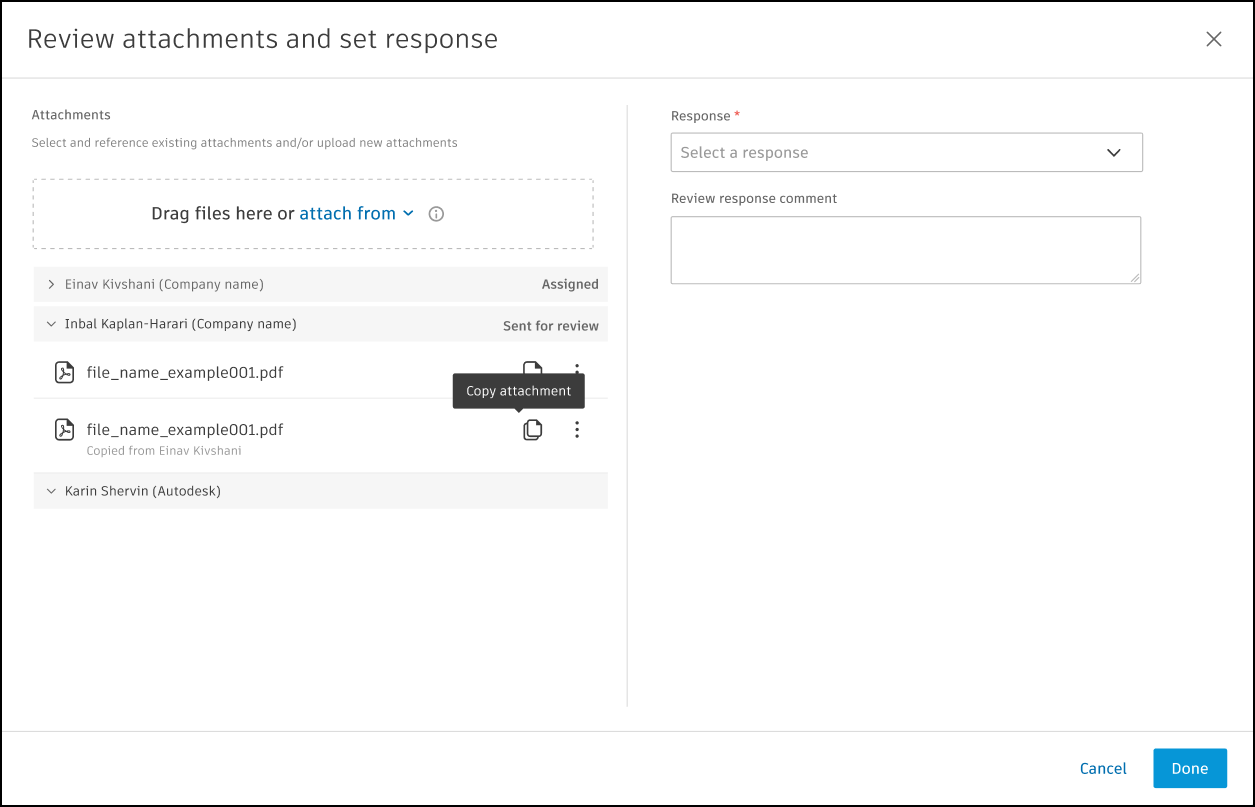

Review Submittal Attachments and Set Response

Reviewers review the items, they need to select attachments that are part of their review and their response.

Closed Submittal Attachments

To Close and distribute submittal item Managers need to select attachments for the final response.

Attachments can be uploaded, annotated or copied.

Final response attachments are added to the final response.

Submittal Attachment Annotations

To edit and add annotations to submittal PDF attachments open the editor in transitions. Reviewers can annotate the Manager’s attachments or attachments of previous reviewers.

Editor functionalities include:

1. Built-in cover page , Custom cover page and Blank page to add a cover page to submittal attachment.

   • Built-in cover page contains information on current submittal Status, Spec Section, Manager, Responsible contractor, and Reviewer
   • Custom cover page needs to be uploaded in PDF format

2. Pen  and Freeform highlight to draw and highlight by hand. Settings:

   • color
   • background color and opacity
   • line width

3. Text  and Text Highlighter to create text fields and highlight text. Settings:

   • text color
   • background color and opacity
   • font, font size, text alignment

4. Shape  to draw select shapes. Settings:

   • color
   • background color and opacity
   • line width and type

5. Cloud  to draw cloud-like rectangle. Settings:

   • color
   • background color and opacity
   • line width and type

6. Polygon  to draw polygon by hand. Settings:

   • color
   • background color and opacity
   • line width and type

7. Stamp  to create stamp from built-in template or add custom stamps from local machine. To create stamp from built-in template:

   1. Click the Stamp icon
   2. Select Create stamp
   3. Select a response from the list
   4. Add stamp text (optional)
   5. Choose stamp color
   6. Name of the user, company and date of creating the stamp are added automatically
